MoTeC Appendices 71

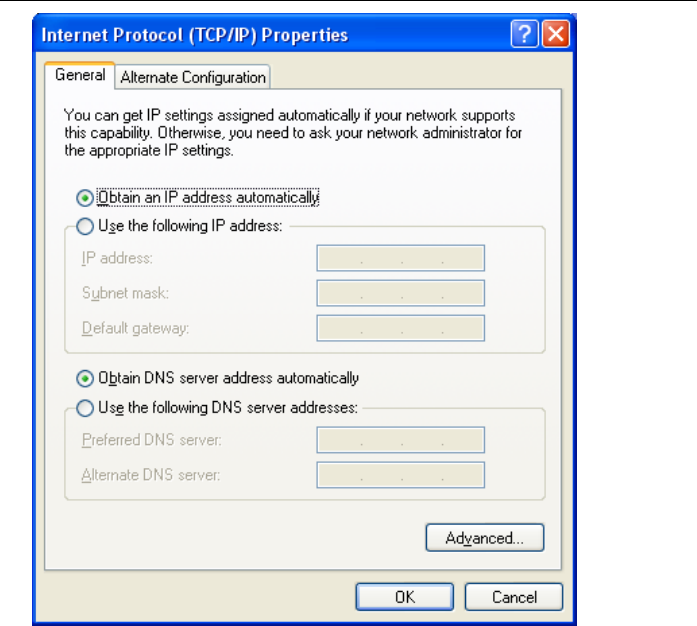

Fast Direct Connection (Fixed IP Address)
If the Basic Direct Connection method takes too long to connect, a more
advanced setup can be used to reduce connection times to around 3
seconds.
Notes:
• Please be aware that changing the PC's network settings can make
connections to other devices on the network stop working.
• Only change the PC network settings if the PC does not need to be
connected to a network or to a device such as a cable or ADSL modem via
the same Ethernet port.
• If the PC has a second Ethernet port that is not used to connect to a
network then this can be used without affecting the network.
• On some PCs an unused Ethernet port may be available if the PC always
connects to the network via a wireless connection.
